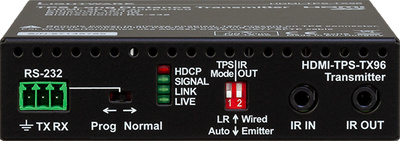

Lightware - HDMI-TPS-TX96 HDBaseT Extender
| Liisi laenukalkulaator | |
| Hind: | |
| Sissemakse: | |
| Periood: | |
| Kuumaksed: | |
" Lightware HDMI-TPS-TX96 HDBaseT Extender, Twisted Pair HDBaseT Transmitter, Enables the transmission of uncompressed Full HD video over long distances using a single CATx cable, Provides bidirectional RS-232, Ethernet and IR pass-through over the same CATx cable that carries the video signal, Fully supports HDCP and EDID and works with all common AV resolutions up to 4K and 48-bit colour depth, Processes all common audio formats as well as 120 Hz 3D signals, Power supply via a single CATx cable possible; alternatively, a local power supply unit can also be used, Can be mounted in a rack or used as a standalone device@+*Technical specifications:*, Data rate: 3.4 Gbit/s per colour, Resolution: All HDMI 1.4a resolutions are supported, Equalisation: Adaptive, automatic, EDID support: Transparent, HDCP pass-through: Yes, Ethernet pass-through: Yes, RS-232 pass-through: Yes, IR transmission: Yes, Overall signal delay: 10µs (including 100m CATx cable), Power supply: Universal power supply unit, 12 V DC, 2.5 A, Power consumption: 3.6 W (typical), 4.2 W (maximum), Dimensions: 100.4 x 100.4 x 26 mm, Weight: 330 g, Made in the EU@+*Connections:*, TX input: HDMI connection, TX output: RJ45 (TPS interface), Ethernet: RJ45, IR input/output: 3.5 mm TRS connector (1/8"" mini jack), Serial interface: 3-pin Phoenix connector, Power supply: Locking DC connector (2.1/5.5 mm)"
- Hinnad Pillipood.ee lehel on eurodes ja sisaldavad käibemaksu 24%.
- Hinnad ei sisalda Eesti-siseseid saatekulusid.
- Täpsema tootekirjelduse leiate tootja kodulehelt.
- Küsimuste korral aitab Teid Pillipood.ee infotelefon tööaegadel 5373 1393
