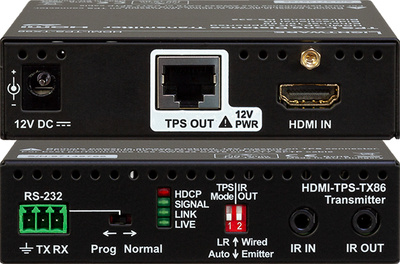

Lightware - HDMI-TPS-TX86 HDBaseT Extender
| Liisi laenukalkulaator | |
| Hind: | |
| Sissemakse: | |
| Periood: | |
| Kuumaksed: | |
Lightware HDMI-TPS-TX86 HDBaseT Extender, Twisted Pair HDBaseT Transmitter, Enables the transmission of uncompressed Full HD video over long distances using a single CATx cable, Provides bidirectional RS-232 and IR pass-through over the same CATx cable as the video signal, Fully supports HDCP and EDID and works with all standard AV resolutions up to 4K with 8-bit colour depth and, for Full HD, up to 48-bit colour depth, Processes all common audio formats as well as 120 Hz 3D signals, Power supply possible via a single CATx cable, Alternatively, a local power supply unit can also be used, Can be mounted in a rack or used as a standalone device@+*Technical specifications:*, Data rate: 3.4 Gbit/s per colour, Resolution: All HDMI 1.4a resolutions are supported, Equalisation: Adaptive, automatic, EDID support: Transparent, HDCP pass-through: Yes, RS-232 pass-through: Yes, IR transmission: Yes, Overall signal delay: 10µs (including 100m CATx cable), Power (power supply): Universal power adaptor, 12 V DC, 2.5 A, Power consumption: 3.6 W (typical), 4.2 W (maximum), Dimensions: 100.4 x 100.4 x 26 mm, TX input: HDMI connection, TX output: RJ45 (TPS interface), IR input/output: 3.5 mm TRS mini-jack, Series interface: 3-pin Phoenix connector, Power supply connector (device): Lockable DC connector (2.1/5.5 mm), Made in the EU
