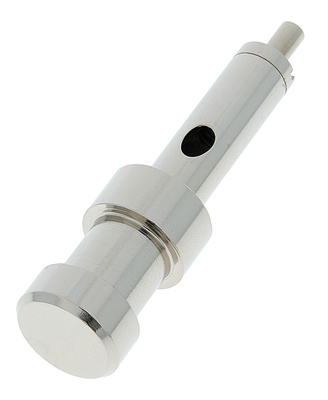

Reutlinger - Typ 15ZW 16mm Stud
" Reutlinger Type 15ZW 16mm Stud; Wire rope holder type 15 ZW with 16 mm (5/8"") pin; for use with, for example, a Super Clamp; For wire rope diameters: 1.0 mm, 1.2 mm, 1.5 mm; Overall length: approx. 54.6 mm (pin length: 26 mm); Working loads:; with stainless steel wire rope 1570 N/mm²:; Wire rope à 1.0 mm: 6 kg; Wire rope à 1.2 mm: 9 kg; Wire rope à 1.5 mm: 15 kg; with black zinc-plated steel wire rope 1960 N/mm²:; Wire rope à 1.0 mm: 8 kg; Wire rope à 1.2 mm: 11 kg; Wire rope à 1.5 mm: 15 kg; with zinc-plated steel wire rope 2300 N/mm²:; Wire rope à 1.0 mm: 11 kg; Wire rope à 1.2 mm: 15 kg; Rope à 1.5 mm: 23 kg; Note: Depending on the Super Clamp used, the permissible load capacity may be lower! Without BG test certificate (not DGUV compliant)"
