DPA - 4011ES





Hind: 1850.00 €
Tootekood: 633571
Tarneaeg: Pole hetkel saada, küsi täpsemalt
Kogus: Ostukorvi »

Liisi laenukalkulaator
Hind:
Sissemakse:
Periood:	3612182430364248
Kuumaksed:	€ Midagi läks valesti! Minimaalne kuumakse on 7 eurot!

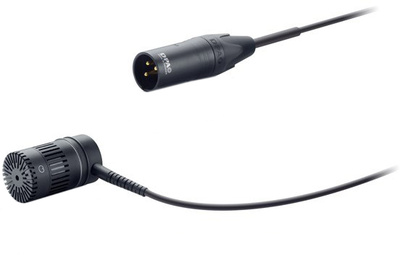

DPA 4011ES, Cardioid Microphone, Pressure gradient, Capsule type: Pre-polarised condenser, Polar pattern: Cardioid, Connector: XLR, Frequency range: 20 Hz - 20,000 Hz, Effective frequency range: 40 – 20,000 Hz (± 2 dB at 30 cm), Nominal sensitivity (±2 dB at 1 kHz): 10 mV/Pa, -40 dB relative to 1 V/Pa equivalent noise level, A-weighted: Typically 18 dB (A) relative to 20 µPa (max. 20 dB (A) equivalent noise level, ITU-R BS.468-4: Typically 25 dB (corrected using an attenuator set to the 0 dB or –20 dB position), Distortion (THD < 1 %): 136 dB SPL RMS, Max. sound pressure level: 139 dB SPL peak, Dynamic range: Typically 121 dB, Maximum sound pressure level (THD 10 %): 159 dB SPL peak, Switchable attenuator / filter etc.: 0 dB / -20 dB, Nominal output impedance: 200 O, Minimum load impedance: 2 kO, Maximum cable length: 100 m (328 ft), Output balance principle: Impedance matching with Active Drive, Common-mode rejection ratio (CMRR): > 60 dB, power supply (for full power): P48 phantom power), Power consumption: 2.8 mA, Connector: XLR-3M (Pin 1: Ground/Shield, Pin 2: Signal + Phase, Pin 3: - Phase), Max. output voltage (RMS): > 5 V, Polarity: +V on pin 2 for positive sound pressure, Temperature range: -40 °C to 45 °C (-40 °F to 113 °F), Relative humidity: Up to 90%, Matching tolerance (frequency response and sensitivity): ±1 dB, Phase deviation for sets: < 10°, Microphone diameter: 19 mm, Capsule diameter: 19 mm, Microphone length: 170 mm, Weight: 158 g, Colour: Black, matte
