ChainMaster - D8+ Ultra DC 250kg 18.75m H-H
| Liisi laenukalkulaator | |
| Hind: | |
| Sissemakse: | |
| Periood: | |
| Kuumaksed: | |

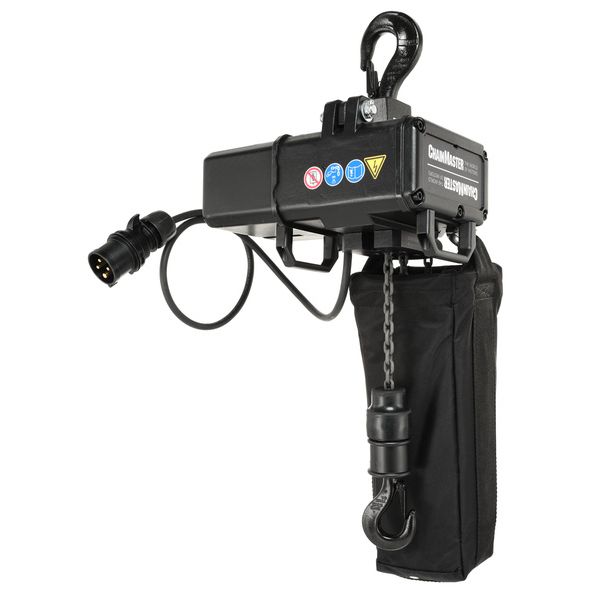

ChainMaster D8+ Ultra DC 250kg 18.75m H-H, Electric Chain Hoist, Hoist standard: D8Plus (2nd brake, load reduction 50%), Suspension in hook-to-hook design, Direct control, 2 DC brakes, Maintenance-free design, Use in normal or climbing position, Low noise emission, Two handles@+*Technical specifications:*, Model designation: SB1.1 / 81U, Lifting speed: 4 m/min, Load capacity: 250 kg, Load strands: One, Load chain according to EN 818-7: P4 x 12 mm (profile steel), Chain length: 18.75 m, Suspension: swivel hook, Chain storage 4/20, Weight (without chain): 16 kg, Chain weight: approx. 0.35 kg/m, Motor power: 0.18 KW, Operating voltage: 3 - 400 V / 3 - 230 V, 1m CEE-16/4 connection cable, Protection rating: IP655@+*Note:*@+Each chain hoist is factory tested, with the results recorded in the crane logbook. The declaration of conformity and the CE marking attached to the chain hoist are valid only when the unit is operated with phase-reversal controls that meet at least the following standards: DIN 60204-32, EN 13849-1, and SQP2 Section 4.1.1. If these standards are not met, the supplied installation declaration shall apply instead.
