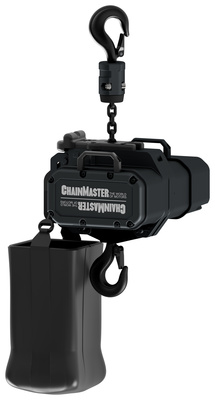

ChainMaster - Chain Hoist 1000kg D8+ Ultra
| Liisi laenukalkulaator | |
| Hind: | |
| Sissemakse: | |
| Periood: | |
| Kuumaksed: | |
ChainMaster Chain Hoist 1000kg D8+ Ultra, Electric Chain Hoist, D8 Plus electric chain hoist from the Ultra series, 25 m chain length, Cast aluminium alloy housing, Black RAL 9005 silk-matte finish, Lightweight and compact design with low-noise operation, Chain box made of textile material, Two spring-loaded brakes with ventilation via DC magnets, Slip clutch to protect the motor, Chain drive plate made of polyamide, Precise chain drive with 5-pocket sprocket, Operating coefficient load chain: - Eight (according to SQP2 2018-10), Hook block for 1-strand operation, Stationary or hoist operation, 1 m CEE-16/4 connection cable, Two handles, Model designation: SK070 / 76U, Lifting speed: 4 m / min, Maximum load capacity: 1000 kg, Load strands: One, Load chain according to EN 818-7: P7.4 x 21.1 mm (profile steel), Suspension: Single-hole suspension eyelet for shackles, Drive unit Hoist FEM/ ISO: 2 m/ M5 4, Duty cycle - circuits/h: ED 40% - 240 S/h, Operating mode: S3 (according to IEC 60034-1), Noise level: 74 dBA / 1 m distance, Motor type: K20R 80K4E, Motor speed: 1410 rpm, Weight (without chain): Approx. 37 kg, Weight of chain: Approx. 1.3 kg / m, Motor power: 1.1 KW, Operating voltage: 3 - 400 V / 3 - 230 V, IP protection rating: IP55, Control: Direct control
